Ip6518, a full protocol fast charging chip for car charging, was officially put into mass production

Release date：2017-07-28   Views：2026

Ip6518, a fast charging vehicle charging chip, has officially entered mass production.

The maximum output of the chip is 45W. It supports the output of type-C interface and integrates various fast charging protocols. It can automatically identify the fast charging protocol supported by the output access device through CC1 / CC2 or DP / DM, and then automatically adjust the output voltage and current. Ip6518 supports DCP (apple, Samsung and bc1.2), Qualcomm qc2.0 / qc3.0, MTK PE + 1.1 / PE + 2.0, Huawei FCP / SCP, Spreadtrum SFCP. Ip6518 also supports USB PD output protocol.

Ip6518 has a variety of protection functions, including input overvoltage and undervoltage protection, output overcurrent, overvoltage, undervoltage and short circuit protection

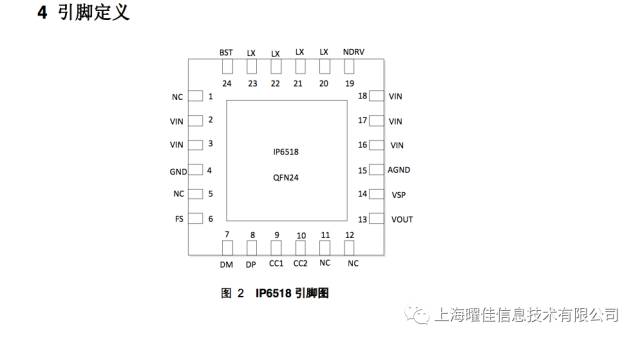

Ip6518 is packaged with 4 * 4mm qfn24.

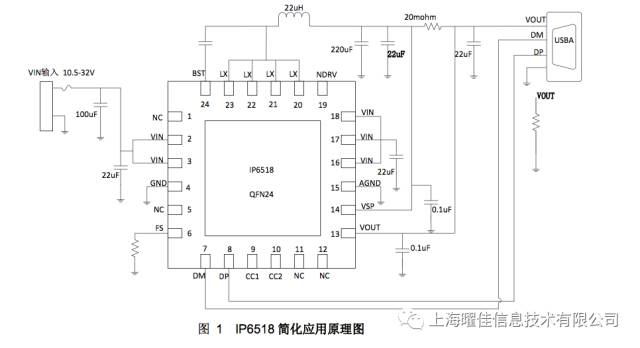

The number of peripheral components used with the chip is also very small. Only one inductor, one resistor and five capacitors are needed. The BOM cost is very low. The simplified application block diagram is as follows:
